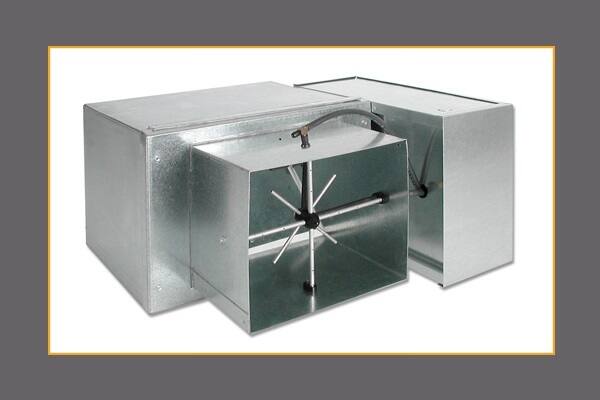

Single Duct Low Height VAV (TSL)

Download Engineering Guide

Critical in today’s building environments is the need to place significant emphasis upon the occupants comfort and indoor acoustics. Johnson Controls single duct low-height units offer the typical benefits provided by single duct units while performing at extremely low sound levels. The Johnson Controls single duct low-height units along with all VAV family model types of Johnson Controls are manufactured and assembled with a patented multi-point, center-averaging, airflow sensor called the FlowStar sensor. The FlowStar sensor provides a signal to the Johnson Controls controller enabling it to quietly and precisely measure airflow. Superior flow measuring allows for control at lower minimum cubic-feet-per-minute (CFM) values, resulting in lower energy costs and sound levels.

Features and Benefits

Resources

•Low height units can be applied for a variety of single duct application requirements and are perfect for retrofit projects, schools, labs & hospitals, anywhere with congested ceiling spaces

•Low height TSL units max height at 10 inches

•TSL-EH (electric heat) units are also flippable

•AHRI 880 and ETL certified and labeled to meet industry performance and safety standards

•Patented, superior “FlowStar” air measuring probe provides for lower minimum cubic feet per minute (CFM) values, which reduces energy costs and noise while maintaining comfort in the zone

•Robust inlet collar for ease in mounting and installation

•Standard Height and Low Height units for a variety of single duct application requirements.

•Robust inlet collar for ease in mounting and installation

•OSHP-OSP certified in compliance with CBC and IBC to ensure cabinet integrity throughout the installation process and seismic events

•An integrated vav box with direct digital controls can provide for a bundled offering with lower total installed costs

Sales Brochure
Engineering Guide
(IOM) Installation and Operation Manual
Guide Specification CSI Formatted
REVIT Files Single Duct Low Height VAV Terminal Units Hot Water Reheat
REVIT Files Single Duct Low Height VAV Terminal Units Electric Heat
Attenuator Piping Packages
Piping Packages
Control Option
WiFi Gateway
Select this VAV box
